High Accuracy GPS Receiver Antenna with Low Noise Amplifier - IP68 Waterproof for Agriculture, Surveying, Navigation & Tracking | Perfect for Precision Farming, Construction Mapping & Marine Navigation
Delivery & Return:Free shipping on all orders over $50
Estimated Delivery:7-15 days international
People:29 people viewing this product right now!
Easy Returns:Enjoy hassle-free returns within 30 days!
Payment:Secure checkout
SKU:82208096
Product Description

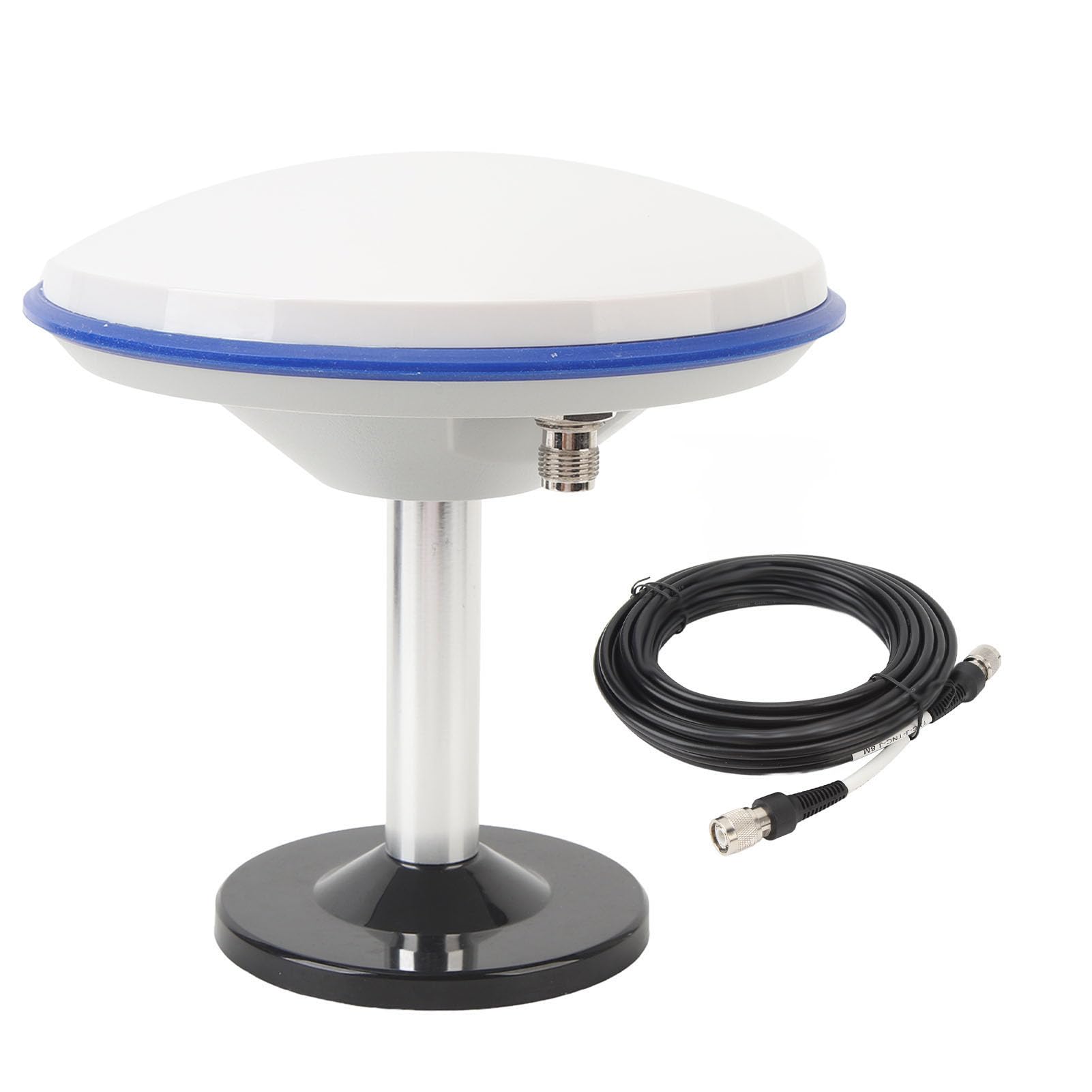

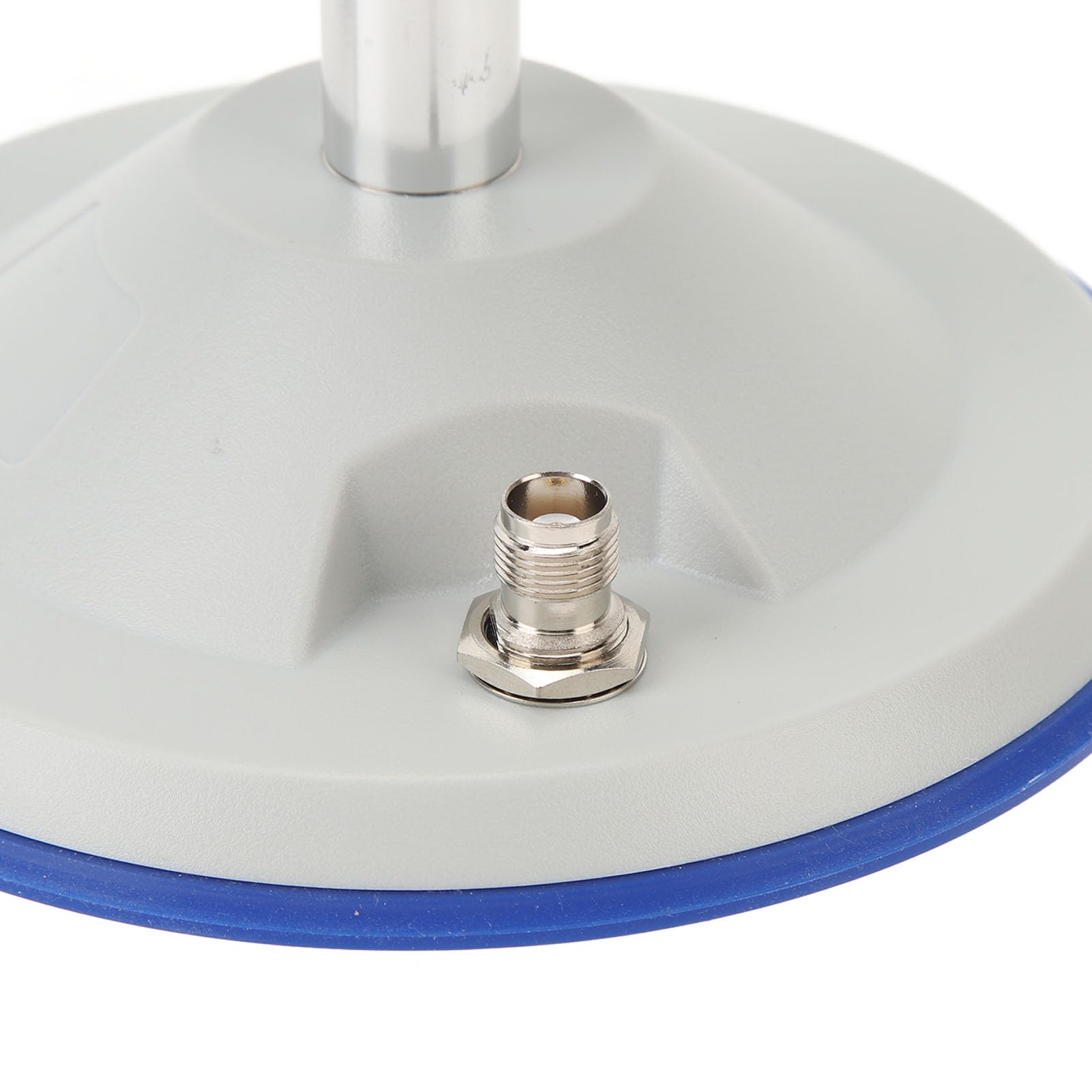

Spec:Item Type: AntennaWorking Frequency Band: BDS: B1A, B1I, B1C, B2I, B2a, B2b, B3A, B3AE, B3QGPS: L1, L2, L5GLONASS: G1, , and G3GALILEO: E1, E5a, E5b, E6ABAS: L1, L5QZSS: L1, L2, L5, L6IRNSS: L5L BandFrequency Range: 1166MHz-1278MHz, 1521MHz-1608MHzImpedance: 50?Polarization Mode: Right Hand Circular Polarization (RHCP)Horizontal Covering Angle: 360 DegreeOutput Standing : ?2Maximum Gain: ?5dBiAntenna Axial Ratio: Phase Center Error: ±2mmLow Noise Amplifier Indicator: Gain: 40dB±2dBNoise Factor: ?2dBOutput Standing : ?2Output Impedance: 50?In band Flatness: ±2dBOutput P1 Compression Point: ?0dBmWorking Voltage: DC 3.3-16VWorking Current: ?45mA (Typical Value)Differential Delay: ?5nsAntenna Size: Approx. 150 x 58.4mm / 5.9 x 2.3inConnector Type: TNC-KBottom Mounting Thread: Centering Rod MountingMounting Thread Specification: Coarse Thread 5/8in-11, Depth 12-14mm / 0.47-0.55inOperating Temperature: -40? to +85?Storage Temperature: -55? to +85?Humidity: 95% Non Condensing Grade: GB/T4208-2017-IP68 (test condition is 1 meter water depth continuous soaking for 2 hours normal work)Shell Overall Compressive Strength: 12.24kgf/cm²Package List:1 x Antenna1 x Mount1 x 5 Meter CableHow To Use:Simply connect and use.
Product Features
[Ip68Grade] and with high compressive strength, the UV-resistant cover ensures long-term outdoor use for high accuracy measurement.
[Low Noise Amplifier] Featuring a pre-filtering technology that suppresses out-of-band interference , this antenna improves reliability and accuracy.

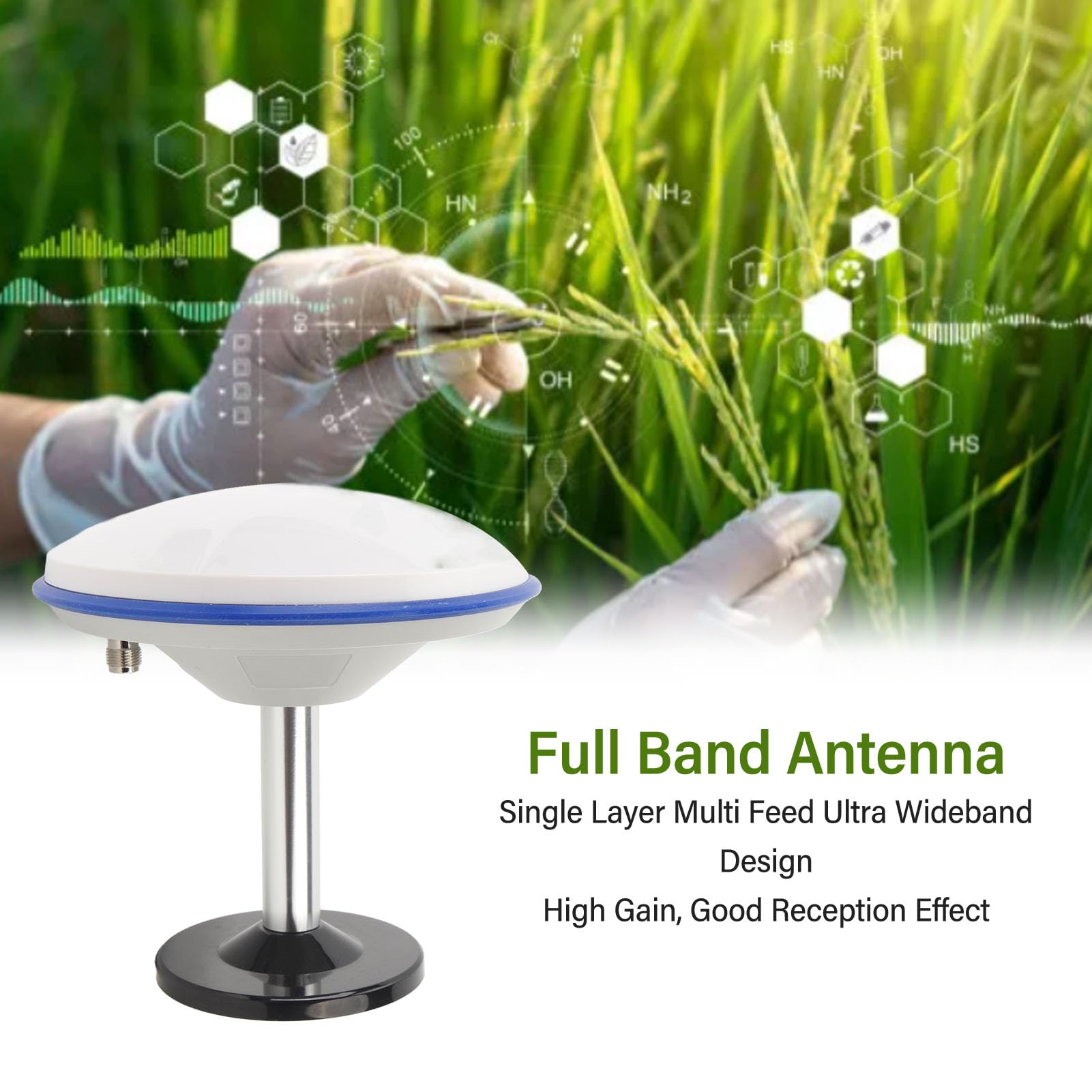

[Small Measuring Error] In GPS measurement, this antenna adopts single-layer multi-feed ultra wideband design, minimizing phase center difference for precise results.
[Good Reception Effect] With high gain and excellent reception on low satellites, this antenna ensures normalcollection even in obstructed areas.
[Wide Application] Ideal for Beidou 2, GPS, GLONASS navigation, this antenna is widely used in geodesy, agriculture, oceanography, and more for precise navigation and locating.
